ahaDRONE

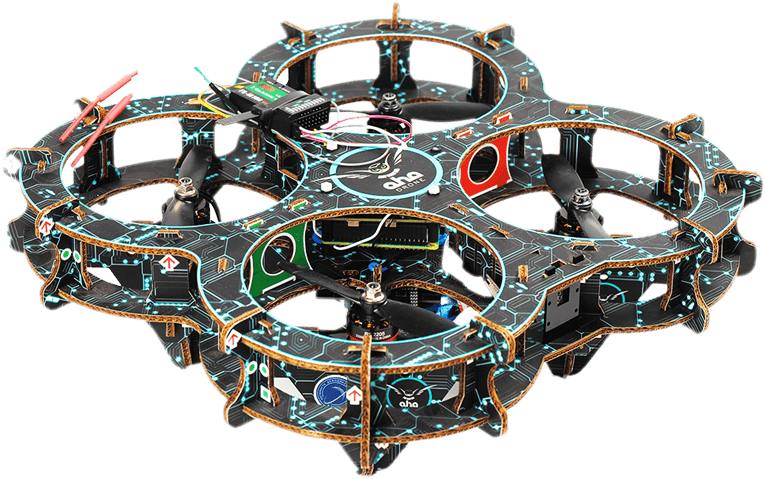

ahaDRONE – The Flat pack Drone Kit includes everything and some extras.
The award winning cardboard drone lets you learn and build advanced drone applications.

ahaPilot Flight Controller
Raspberry Pi 3 Model A+
12 Megapixel Camera
Accessories

50,000.00

Pre-Order Now and be among the first to receive your ahaDRONE Kit.

Are you still flying the same old drone from two years ago? It’s time to try ahaDRONE. This versatile drone is built with a corrugated air-frame and opensource tools. You can easily modify it for different applications, like emergencies, forestry, agriculture, urban management, and research.

Imagine a Drone that is powered by a combination of Raspberry Pi and Arduino technologies. Imagine a Drone that you could infinitely customize. Imagine your ideas on wings.

Drone With Most Innovations

Light Weight

High stiffness

Corrugated Technology

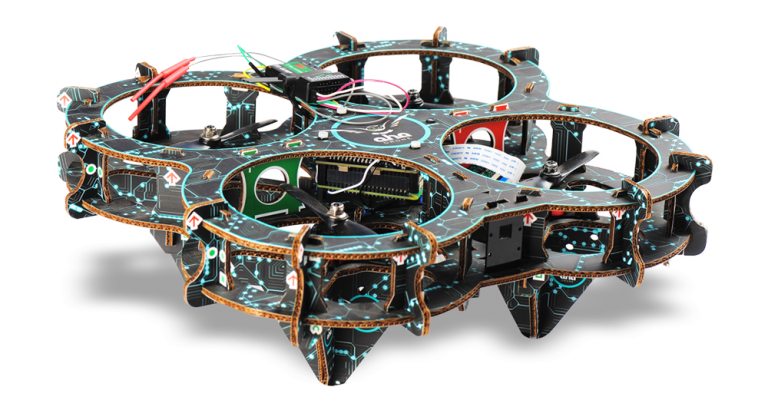

ahaDRONE airframe is made out of corrugated board which we have engineered for aerospace applications, making it easy for the developers to modify the air-frame to suit specific applications.

We call it ahaDRONE the Drone With Most Innovations

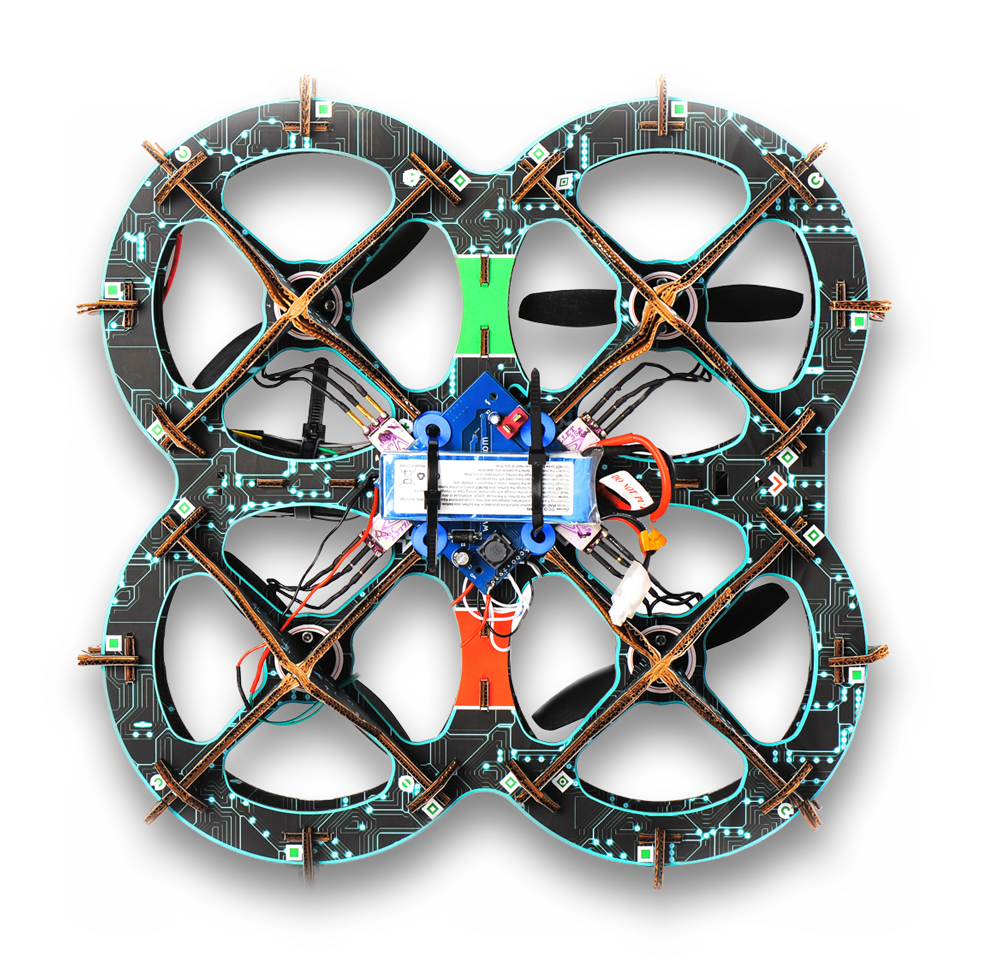

A corrugated air-frame coupled with familiar opensource tools makes ahaDRONE the most adaptable drone platform and an innovation friendly drone. Anyone with programming knowledge and bit of passion can modify it for different applications. The flexibility allows ahaDRONE to be adapted to several applications in emergencies, forestry, agriculture, urban management, logistics and research.

ahaDRONE is a drone that is both versatile and innovative. The corrugated airframe provides a lightweight, sturdy, and durable structure that can be used for a variety of applications. The onboard Raspberry Pi computer and flight controller allows for easy customization to fit the needs of any situation. With the use of opensource tools, this drone is an innovative piece of technology.

Raspberry Pi

12 MP Camera

GPS

Available as a Build and Fly Kit with many features and functionality only found in high end drones at the same time flexible enough to modify using some glue, paper cutter and a few lines of code.

Features

1. Open source airframe, flight controller hardware and software.
2. Award winning Design Engineering.
3. Build and Fly Kit.
4. Easy to assemble and disassemble.
5. Fully customizable, Fully hackable airframe.
6. Addresses Drone use cases in Education, Recreation and Research.
7. Light Weight, High Stiffness and Environmentally Friendly Drone Airframe.
8. AhaPILOT Flight Controller Board in companion with Raspberry Pi 3A+,  Arduino Compatible, Wi-Fi & Radio,Controlled.
9. Upto 10 Mins Flight time.
10. ahaDRONE DIY-Kit includes 5 Color variants.

Specification

DIY

Educational

Open Source

We believe that ahaDRONE can play a pivotal role in tackling an increasingly complex world. That’s why we’re sharing the project with the world and encouraging everyone to get involved and contribute.

ahaPilot – Flight Controller Stack

Atmega328 Microcontroller.
Raspberry Pi 3 A+.
Accelerometer.
Gyroscope.
Magnetometer.
Barometer.
GPS (Optional).
Hardware Radio. Controller(Optional).
Opensource Software Autopilot.

Opensource Hardware.
Flight Controller Arduino toolchain compatible.

Kit Dimensions

465mm, 465mm, 45mm (L, B, H)
2500g (approximately, Including Battery)

Power System

1800mAh 3S Lithium Battery
ahaPower board

AI/ML ready

I/O Ports

Build and Fly

ahaDRONE is a great educational tool to learn and build drones and master UAV technology. We can partner with universities to host drone workshops and UAV hackathons. Using our software and hardware we can and encourage participants to solve real world problems using drones.

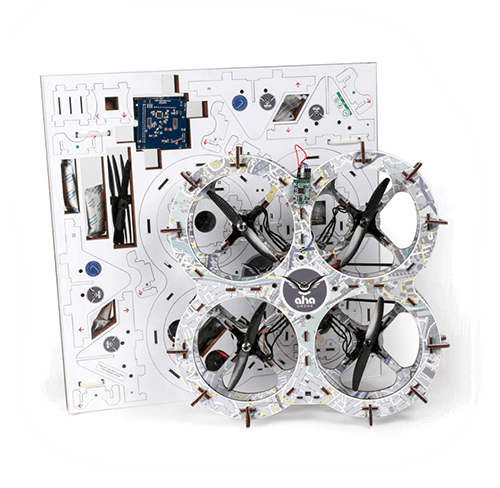

The Flat pack Do It Yourself Drone Kit Includes

ahaPILOT Board

ahaPower Board

4 Nos BLDC Motors

Raspberry Pi 3 A+

8 GB SD card

12 Megapixel Camera

11.1 V 1500mah Lithium Battery

5 Nos Do-It-Yourself Corrugated Air frames

Necessary Tools and Accessories

Available Port

I2C Peader

SPI Test Pads

Battery Port

PPM/PWM Headers

GPIO ports from Raspberry Pi

soft radio control

Use Case Idea, git links interactive

Package Bundles

You will be charged for the plan after the admin approves your vendor account

Personal

29
99
  • 15 Accounts
  • 100 GB Space
  • 1 Domain Name
  • 500 GB Bandwidth

Pro

39
99
  • 15 Accounts
  • 100 GB Space
  • 1 Domain Name
  • 500 GB Bandwidth

Team

59
99
  • 15 Accounts
  • 100 GB Space
  • 1 Domain Name
  • 500 GB Bandwidth

The award winning drone

We have iterated thousands of incremental and disruptive developments in airframe design, hardware and software development

Partner with us

Do you want to Buy ahaDRONEs in Large Quantities?

Do you want to know more about the product?

Let us Know! We will get back to you.

Pre-order now and get notified about the delivery date.

ORDER NOW

The design, specifications, look and graphics of the final product may vary from the picture.

What is the range of ahaDRONE?

The ahaDRONE can cover up to the maximum range of 150 feet with no restrain due to its lightweight.

What is the flight time?

Upto 10 Mins.

What is the net weight of ahaDRONE?

ahaDRONE weighs approximately 600 grams including battery and propellers.

What is the ahaDRONE made of?

ahaDRONE airframe is made out of corrugated board which we have engineered for aerospace applications, making it easy for the developers to modify the air-frame to suit specific applications.

Why Corrugated Board and Open Source?

ahaDRONE is a Build and Fly Kit with many features and functionalities of high end drones, and at the same time is practical enough to modify using some glue, paper cutter and a few lines of code to meet the specific mission objective. Cross-fluted corrugated board provides uniform strength in all directions, suitable for engineering and aerospace applications.

Is it Arduino Compatible?

Yes

Does it include Raspberry Pi?

Yes, ahaDRONE includes Raspberry Pi 3A+ that is preconfigured.

For what purpose can ahaDRONE be used for?

ahaDRONE benefits the users with opportunities to learn Engineering Aerial Robots, Application Development, Sensors and Control System, Design Thinking. The possibilities are unlimited, including all the 1000s of already existing Arduino Projects!

Where can I buy spares for ahaDRONE?

All spares and components will be available on our online store and the same will be made available through our channel partners.

How can I control the ahaDRONE?

ahaDRONE can be hovered by Radio Controller or by Smartphone Application over WIFI.

What if the ahaDRONE goes out of WiFi range?

ahaDRONE hovers at the same place and searches for the WIFI connection and tries to reconnect. Once it is connected ahaDRONE will safely land.

Is your Flight Controller Reprogrammable?

Yes, we are using an Open Source Flight Controller which can be reprogrammed based on your applications.

Is your DRONE capable to withstand with Atmospheric conditions?

We have included the IMU sensor which keeps ahaDRONE stable in normal weather conditions.
